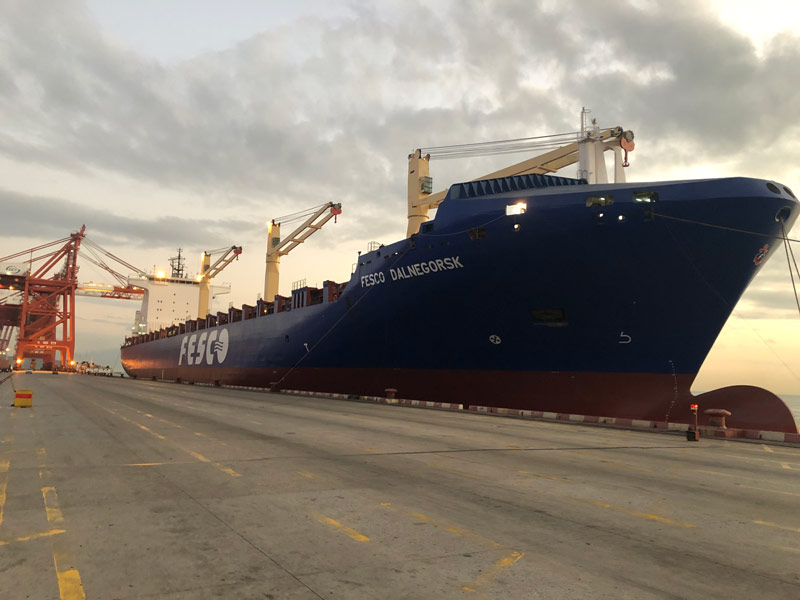

FESCO Dalnegorsk

FESCO Dalnegorsk
The single-screw motor ship with excessive freeboard, fitted with one fixed pitch propeller driven by slow speed engine. Six cargo holds, engine room and accommodation aft, transom stern, bulbous bow, one transverse bow thruster. Three cargo cranes on main deck. Holds № 2-5 prepared for IMO dangerous cargoes of 1.4s, 2.1-2.3, 3, 4.1-4.3, 5.1, 6.1, 8 and 9 classes. Hold №1 additionally prepared for IMO classes 1.1-1.6 dangerous cargoes. Holds 2-5 cell guides fitted with stoppers, abt. 5.25 m above tank top, for transportation of 40' containers above break bulk cargoes. Stack load for stoppers:150t/FEU

Year Built:

2004

Place Built:

Poland

Capacity

3108 TEU

Flag:

Cyprus

Call sign:

A8EI3

Classification Society

DNV-GL

Class notation:

[+] 1A1 Container carrier

BIS DG(P) E0 NAUTICUS (Newbuilding) TMON

Technical specification

  • Characteristics

    Length o.a.:

    220.50 m

    Length between perpendiculars:

    210.20 m

    Breadth:

    32.24 m

    Depth:

    18.70 m

    Draft summer load line:

    12.15 m

    Deadweight:

    41748,0 t

    Register tonnage gross:

    35881

    Register tonnage net:

    14444

    Service speed laden:

    22 kn

    Capacity TEU:

    3091 (Hold - 1408, Hatches + Main Deck - 1683)

    The number of stability containers (14t) TEU:

    2347

    TEU + FEU (40'):

    57 + 1517 (FEU: Hold - 684, Hatches+Main Deck - 833)

    Reefer sockets:

    500

    Cargo cranes

    3 Deck cranes SWL 45 MT Outreach 27.5 M

  • Permissible load

    Tank Top:

    TEU -168t, FEU -210t, 12t/m2

    Hatches:

    TEU-60t, FEU-80t, 1,75t/m2

    Main Deck:

    TEU-65t, FEU-80t, 3t/m2

  • Fuel consumption

    HFO

    MDO

    Recommended

    RMG 380

    DMA

    Viscosity,  сSt

    380,0

    6,0

    At sea, mt/day

    RMG380 – 97,5 mt/day

    In port (working), mt/day

    RMG380 - 13,3 mt/day

    In port (idle), mt/day

    RMG380 - 7,3 mt/day

    For maneuver, kg/hrs

    RMG380 – 1000 kg/hrs

    In the case of carriage working ref. containers, the additional fuel consumption 37 kg/day provides on each container.

    SHIP'S STORE (BUNKER)

    TON

    HFO

    4085,50

    MDO

    250,0

    Water ballast

    15468

  • Cargo spaces

    HOLD, SIZE L × B × H

    HATCH, SIZE L × B

    1

    28,44 × 5,8/28,0 × 19/21

    2 x 12,64 × 23,02/28,3

    2

    27,65 × 28,0 × 19,0

    2 x 12,64 × 28,30

    3

    27,87 × 28,0 × 19,0

    2 x 12,64 × 28,30

    4

    27,87 × 28,0 × 19,0

    2 x 12,64 × 28,30

    5

    27,87 × 28,0 × 19,0

    2 x 12,64 × 28,30

    6

    12,64 × 28,0 × 19,0

    1 x 12,64 × 28,30
