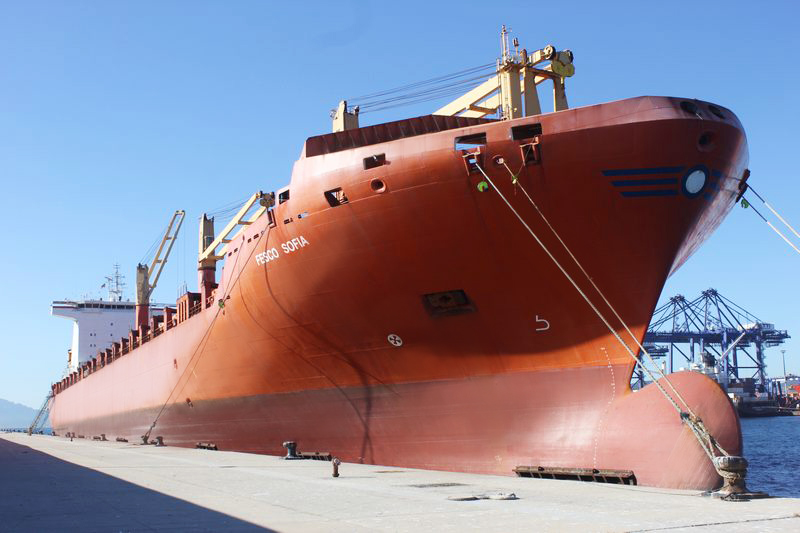

FESCO Sofia

FESCO Sofia
The single-screw, Diesel-engine motor ship with raking stem and bulbous bow, transom stern and flap-rudder. The hull is fully welded. Main deck to be continuous in full length. Double bottom extends from forepeak compartment to E.R. bulkhead. In way of E.R., a double bottom with increased height will be arranged. The vessel to be provided with forecastle, poop and aft deckhouse.

Technical specification

  • Characteristics

    Year Built:

    2004

    Place Built:

    POLAND

    Capacity:

    3091 TEU

    Flag:

    CYPRUS

    Call sign:

    5BWL5

    IMO №

    9237503

    Classification Society

    LLOYD REGISTER

    Class notation:

    LR

    DATA FOR THE VESSEL



    Length o.a.:

    220.45 m

    Length between perpendiculars:

    210.20 m

    Breadth:

    32.24 m

    Depth:

    18.70 м

    Draft summer load line:

    12.15 m

    Deadweight:

    41748 t

    Register tonnage gross:

    35881

    Register tonnage net:

    14444

    Service speed laden:

    22.2 kn

    Capacity TEU:

    3091 (Hold - 1408, Hatches + Main Deck - 1683)

    Reefer sockets:

    On Deck - 300
    In Hold - 200
    Total: - 500

    Cargo Cranes:

    Electro-hydraulic,
    Cargo cranes 3 × 45 t,
    45 т - (boom 27,5 м)
    70 т- (boom 30,5 м)

    Life Boat cran – 1 pc,
    6,5 т - (boom 12,0 м),

    Cervice crane – 1 pc,
    1,5 т - (boom 12,0 м),

  • Permissible load

    Tank Top:

    TEU-168t, FEU-210t, 12,00t/m2

    Hatches:

    TEU- 60t, FEU-90t,(Bay 1 -3 ) 1,75t/m2
    TEU-80t,FEU-100t,(Bay 05-43 ) 1,75t/m2

    Main Deck:

    TEU-80t,FEU-100t,(Bay 45-47) 3,00 t/m2

  • Fuel consumption



    HFO

    MDO

    Recommended

    RMG 380

    DMA

    Viscosity, cSt

    380,0

    6,0

    At sea, mt/day

    RMG 380 – 92,5 mt/day

    In port (working), mt/day

    RMG 380 –7.3 mt/day

    In port (idle), mt/day

    RMG 380 – 7.3 mt/day

    For maneuvers, kg/hrs

    RMG380 – 1000 kg/hrs

    SHIP'S STORE (BUNKER)

    TON

    HFO

    3999,6

    MDO

    245,1

    Water ballast

    15854,7

  • Cargo spaces



    HOLD, SIZE L × B мм

    HATCH,SIZE L × B x H x Weight

    1

    12584 × 22950

    PS 13050 × 11715 х 1014 x 32,60
    SS 13050 × 11715 х 1014 x 32,60

    2 - 6

    12584 × 28208

    PS 13050 × 10585 х 1018 x 32,30br> SS 13050 × 10585 х 1018 x 3340
    CENTRAL 13050 х 7500 х 1018 х 28,80
