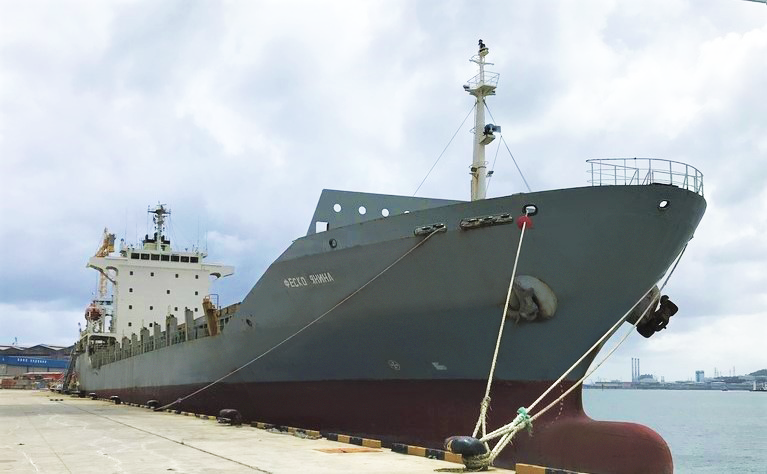

FESCO Yanina

FESCO Yanina
The single-screw, Diesel-engine motor ship with raking stem and bulbous bow, transom stern and flap-rudder. The hull is fully welded. Main deck to be continuous in full length. Double bottom extends from forepeak compartment to E.R. bulkhead. In way of E.R., a double bottom with increased height will be arranged. The vessel to be provided with forecastle, poop and aft deckhouse.

Technical specification

  • Characteristics

    Year Built:

    2005

    Place Built:

    Republic of Korea

    Flag:

    Russia

    Call sign:

    UBOW6

    IMO №

    9301304

    Classification Society

    Russian Maritime Register of Shipping

    Class notation:

    KM* LI BWM(T)

    Length o.a.:

    142.70 m

    Length between perpendiculars:

    134.67 m

    Breadth:

    22.60 m

    Depth:

    11.20 m

    Draft summer load line:

    8.21 m

    Deadweight:

    13007 t

    Register tonnage gross:

    9522

    Register tonnage net:

    4960

    Service speed laden:

    18.0 kn

    Capacity TEU:

    962 (Hold - 325, Hatches + Main Deck - 637)

    Reefer sockets:

    120

    Cargo Cranes :

    non

  • Permissible load

    Tank Top:

    TEU-90t, FEU-120t, 16t/m2

    Hatches:

    TEU-60t, FEU-90t, 1,75t/m2

    Main Deck::

    TEU-60t, FEU-100t 1,75t/m2

  • Fuel consumption



    LS HFO

    LS MDO

    Recommended

    RMG 380

    DMA

    Viscosity, cSt

    380,0

    6,0

    At sea, mt/day

    RMG 380 – 22,0 mt/day

    In port (working), mt/day

    MDO – 3.5 mt/day

    In port (idle), mt/day

    MDO– 2,5 mt/day

    For maneuvers, kg/hrs

    RMG380 – 600 kg/hrs

    SHIP'S STORE (BUNKER)

    TON

    HFO

    710,10

    MDO

    85,78

    Water ballast

    4199,64

  • Cargo spaces



    HOLD, SIZE L × B × H

    HATCH, SIZE L × B

    1

    12,40 × 12,80 × 11,80/9,0

    12,58 × 13,12/7,90

    2

    25,40 × 18,20 × 11,80

    12,58 × 18,24 / 2шт

    3

    12,80 × 18,20 х 11,80

    12,58 × 18,24

    4

    25,40 × 18,20 × 11,80

    12,58 × 18,24 / 2шт

    5

    12,80 × 18,20 х 11,80

    12,58 × 18,24
