Container fleet

FESCO Transportation Group operates over 170 000 TEU, dimensions of all containers comply with ISO standards.

>170000

containers
Container size
Loading
Volume
20’DC
General purpose 20ft container for transporting general cargo of total weight not exceeding 28 tons. Preferable shipment of cargo of high specific weight.
28 tonnes
Maximum load
33,2 m3
Volume
External dimensions
20' × 8' × 8'6'' ft / 6058 × 2438 × 2591 mm
Internal dimensions
5898 × 2352 × 2393 mm
Doorframe
2340 × 2280 mm
Max gross weight
30480 kg
Max payload
28260 kg
Tare weight
2220 kg
Cubic capacity
33,2 m3
20’HC
General purpose 20ft increased volume container (high cube) for transporting general cargo of total weight not exceeding 28 tons. Preferable shipment of bulky cargo of low specific weight in small amounts.
28 tonnes
Maximum load
37,5 m3
Volume
External dimensions
20' × 8' × 9'6'' ft / 6058 × 2438 × 2896 mm
Internal dimensions
5898 × 2352 × 2698 mm
Doorframe
2340 × 2585 mm
Max gross weight
30480 kg
Max payload
28140 kg
Tare weight
2340 kg
Cubic capacity
37,5 m3
40’DC
General purpose 40ft container for transporting general cargo of total weight not exceeding 26.5 tons. Preferable shipment of bulky cargo of low specific weight.
26,5 tonnes
Maximum load
67,7 m3
Volume
External dimensions
40' × 8' × 8'6'' ft / 12192 × 2438 × 2591 mm
Internal dimensions
12032 × 2352 × 2393 mm
Doorframe
2340 × 2280 mm
Max gross weight
30480 kg
Max payload
26820 kg
Tare weight
3660 kg
Cubic capacity
67,7 m3
40’HC
General purpose 40 ft increased volume container (high cube) for transporting general cargo of total weight not exceeding 26.5 tons. Preferable shipment of bulky cargo of low specific weight.
26,5 tonnes
Maximum load
76,4 m3
Volume
External dimensions
40' × 8' × 9'6'' ft / 12192 × 2438 × 2896 mm
Internal dimensions
12032 × 2352 × 2698 mm
Doorframe
2340 × 2585 mm
Max gross weight
30480 kg / 32500 kg*
Max payload
26640 kg / 28660 kg*
Tare weight
3840 kg
Cubic capacity
76,4 m3
*Reloading equipment of some handling terminals has restrictions regarding payload. Please specify when placing your request.
45’HC PW
45FT general-purpose high cube container (with extra height and width) used for transportation of over-height and over-sized cargo with the total weight of up to 29.5 tons, has space for 2 europallets (1200 mm).
29,5 tonnes
Maximum load
89,3 m3
Volume
External dimensions
45' × 8'2'' × 9'6'' ft / 13716 × 2500 × 2896 mm
Internal dimensions
13543 × 2444 × 2698 mm
Doorframe
2408 × 2584 mm
Max gross weight
34000 kg*
Max payload
29520 kg*
Tare weight
4480 kg
Cubic capacity
89,3 m3
40’HC PW
40FT general-purpose high cube container (with extra height and width) used for transportation of voluminous cargo with the total weight of up to 29.5 tons, has space for 2 europallets (1200 mm).
29,5 tonnes
Maximum load
79 m3
Volume
External dimensions
40' × 8' × 9'6'' ft / 12192 × 2462 × 2896 mm
Internal dimensions
12095 × 2422 × 2692 mm
Doorframe
2400 × 2584 mm
Max gross weight
34000 kg*
Max payload
29600 kg*
Tare weight
4400 kg
Cubic capacity
79,0 m3
40’SHC TR
40FT specialized high cube container (with extra height) with the TransRak system (lifting equipment) used for car transportation.
47 tonnes
Maximum load
84,9 m3
Volume
External dimensions
40' × 8' × 10'6'' ft / 12192 × 2438 × 3180 mm
Internal dimensions
12032 × 2352 × 3001 mm
Doorframe
2340 × 2888 mm
Max gross weight
25000 kg
Max payload
19740 kg
Tare weight
5260 kg
Cubic capacity
81,5 / 84,9 m3*
40’ FR
A flatrack/platform similar to 40’FR container with panels at either end but no side walls, used for transportation of oversized cargo, which can be freely loaded and secured on any side.
47 tonnes
Maximum load
External dimensions
40' × 8' × 8'6'' ft / 12192 × 2438 × 2591 mm
Internal dimensions
12180 × 2225 × 1955* mm
Max gross weight
45000 - 52500 kg
Max payload
40050 - 47400 kg**
Tare weight
4950 - 5100 kg
20’ FR
A flatrack/platform similar to 20’DC container with panels at either end but no side walls, used for transportation of oversized cargo, which can be freely loaded and secured on any side.
31 tonnes
Maximum load
External dimensions
20' × 8' × 8'6'' ft / 6058 × 2438 × 2591 mm
Internal dimensions
5868 × 2370 × 2281* mm
Max gross weight
34000 kg
Max payload
31250 kg
Tare weight
2750 kg
40’ OT
Specialized open-top container similar to a 40FT general-purpose container (with capacity up to 26.5 tons) allowing top-loading. After the loading the roof of the container is covered with a tarp cover.
26,5 tonnes
Maximum load
65,9 m3
Volume
External dimensions
40' × 8' × 8'6'' ft / 12192 × 2438 × 2591 mm
Internal dimensions
12028 × 2350 × 2351* mm
Doorframe
2340 × 2280 mm
Max gross weight
30480 kg
Max payload
26680 kg
Tare weight
3800 kg
Cubic capacity
65,9 m3
20’ OT
Specialized open-top container similar to a 20FT general-purpose container with (capacity up to 28 tons) allowing top-loading. After the loading the roof of the container is covered with a tarp cover.
28 tonnes
Maximum load
32,6 m3
Volume
External dimensions
20' × 8' × 8'6'' ft / 6058 × 2438 × 2591 mm
Internal dimensions
5898 × 2352 × 2352* mm
Doorframe
2340 × 2280 mm
Max gross weight
30480 kg
Max payload
28130 kg
Tare weight
2350 kg
Cubic capacity
32,6 m3

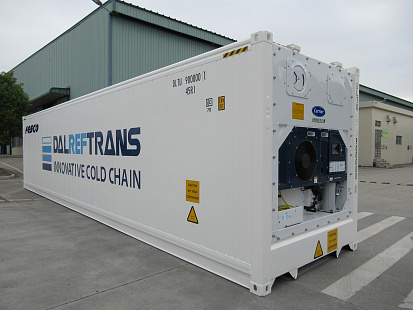

40’RF HC
40ft refrigerated high cube container used for transportation of temperature-sensitive cargo with a total weight of up to 29 tons.
29 tonnes
Maximum load
67,9 m3
Volume
External dimensions
40' × 8' × 9'6'' ft / 12192 × 2438 × 2896 mm
Internal dimensions
11585 × 2290 × 2545 mm
Doorframe
2290 × 2510 mm
Max gross weight
30480 / 34000 kg*
Max payload
25760 / 29720 kg*
Tare weight
4720 / 4730 kg
Cubic capacity
67,5 / 67,9 m3

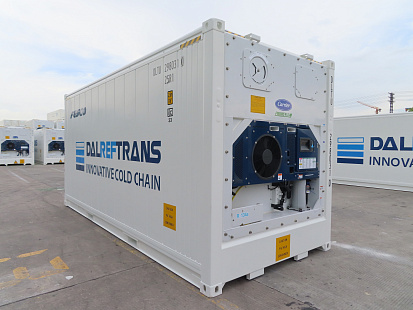

20’RF HC
20ft refrigerated high cube container used for transportation of temperature-sensitive and perishable cargo with a total weight of up to 23.5 tons.
23,5 tonnes
Maximum load
33 m3
Volume
External dimensions
20' × 8' × 9'6'' ft / 6058 × 2438 × 2896 mm
Internal dimensions
5506 × 2304 × 2602 mm
Doorframe
2300 × 2539 mm
Max gross weight
27000
Max payload
23675
Tare weight
3325
Cubic capacity
33,0
